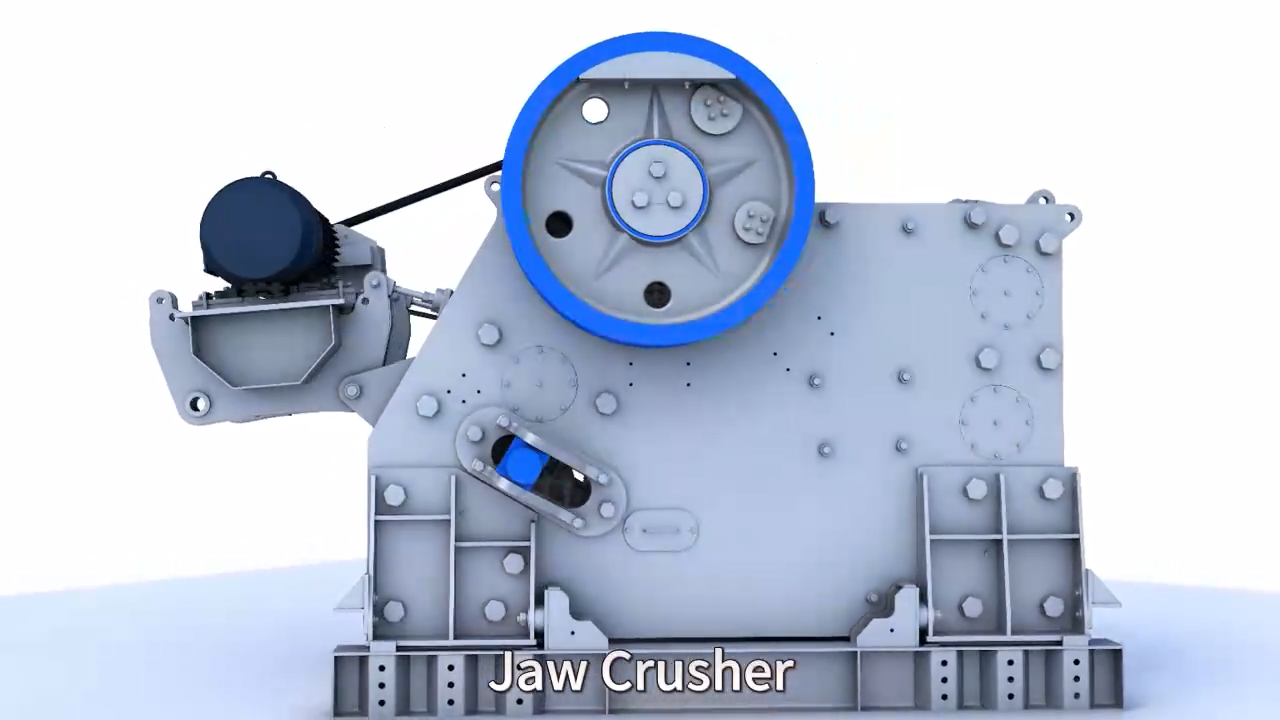

Jaw crusher

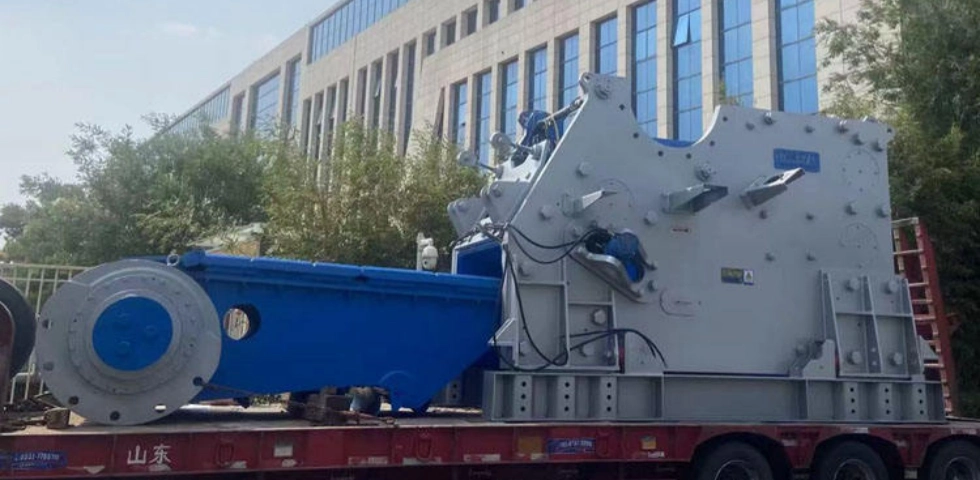

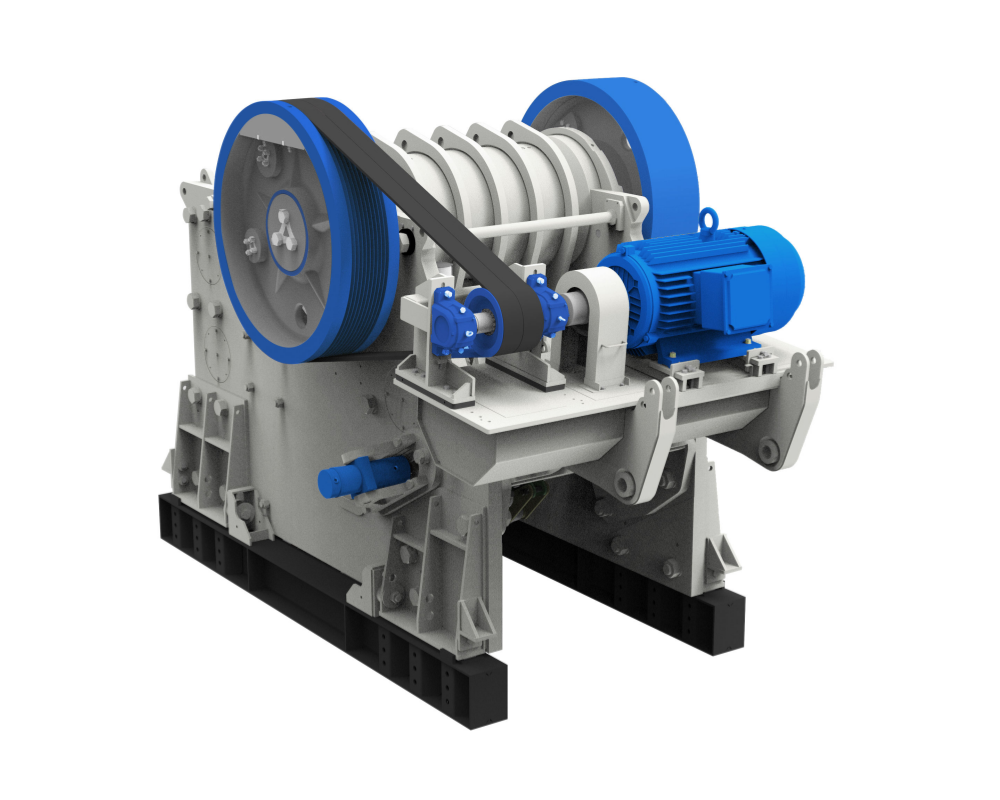

Rock Jaw Crusher

A jaw crusher, or jaw stone/rock crusher, is a common coarse crushing machine that squeezes materials between a moving and stationary jaw. Used in stone crushing, sand making, and mineral processing, Zhongyu Dingli's DLEV series features a deep cavity design to prevent blockages, increase feeding capacity, and produce uniform products.

Materials:

Limestone, granite, basalt, marble, river pebbles, iron ore, etc.

Capacity:

155–1500 t/h

Feed Size:

≤1250 mm

Technical Specifications

Industry-leading performance metrics and capabilities

Parameter	DLEV106	DLEV125	DLEV160	DLEV200
Feed Opening (mm)	1060×700	1250×950	1600×1200	2000×1500
Max Feed Size (mm)	≤600	≤800	≤1000	≤1250
Discharge Gap (mm)	60–250	75–275	120–300	135–350
Motor Power (kW)	110	160	250	400
Capacity (t/h)	155–500	240–760	420–1100	620–1500

Machine Details

Precision-engineered components for unmatched performance

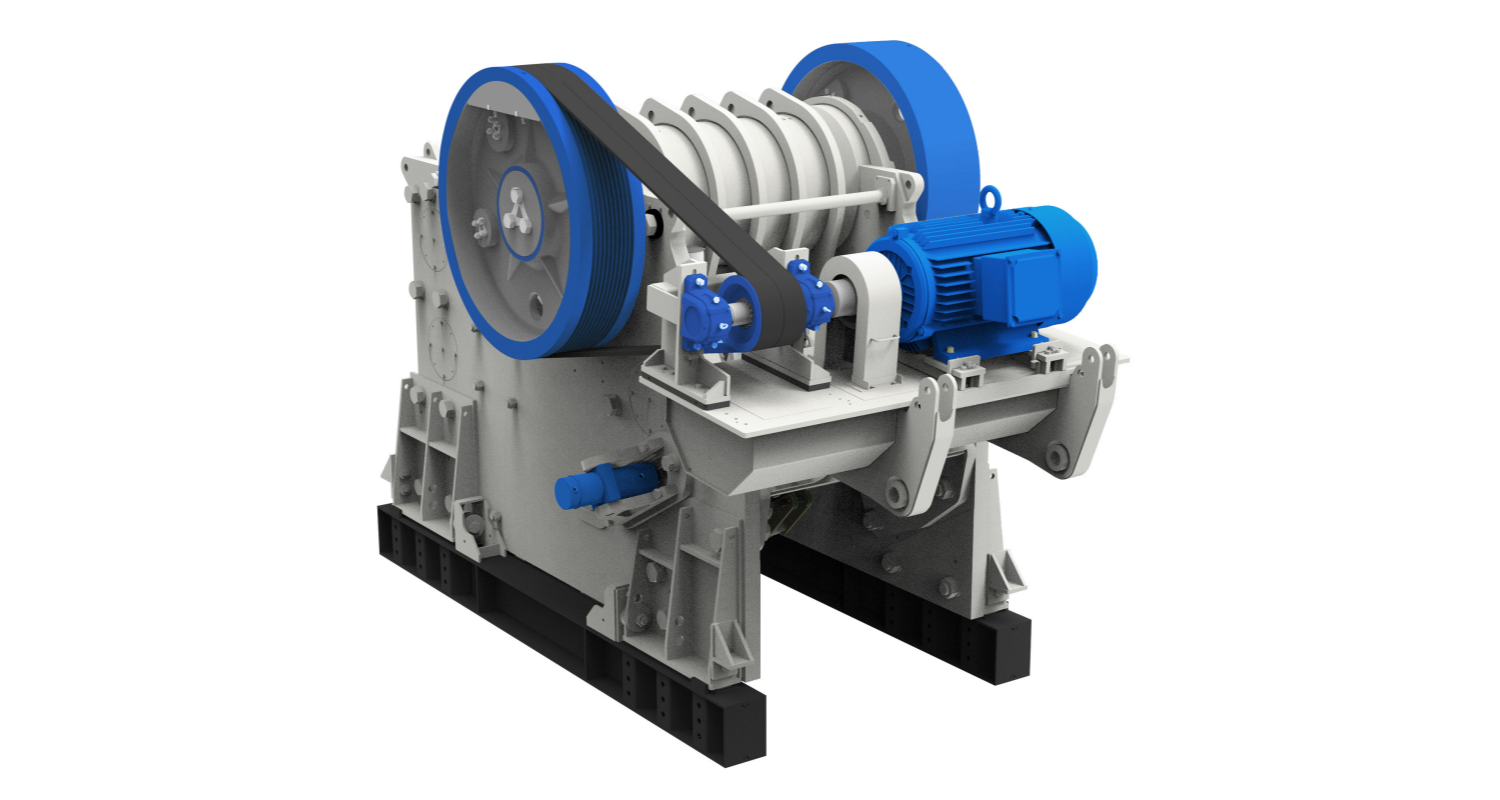

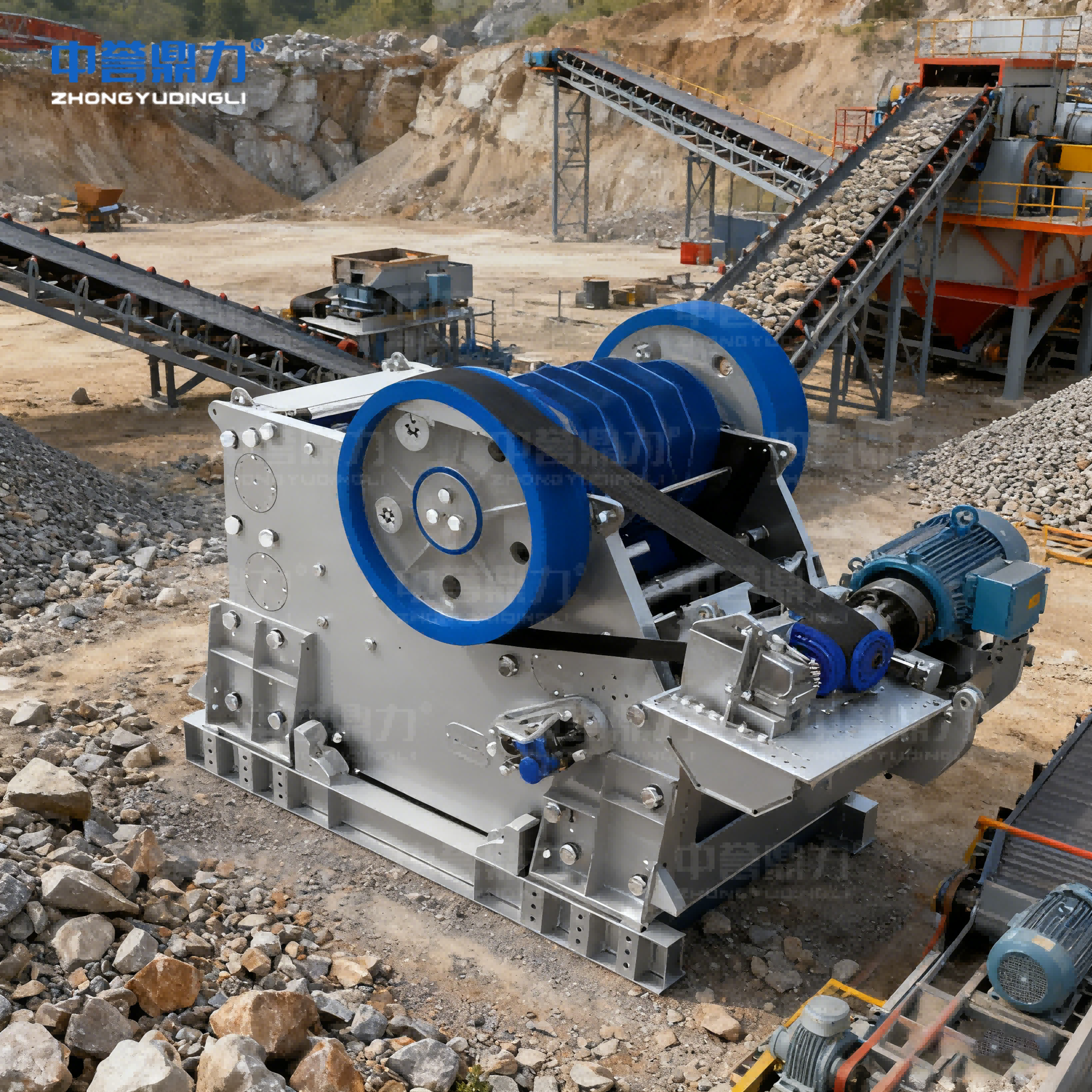

Primary Jaw Crusher Production Line

Core Advantages

Zhongyu Dingli’s DLEV jaw crusher features a deep cavity with no dead zones, reducing material blockage.

Hydraulic Control

Safer Operation – The hydraulic safety system enhances operational security and overall equipment stability.
Automatic Alert – When large uncrushable materials enter the crushing chamber, the system issues a fault warning for immediate response.
Easy Discharge – After shutdown, the hydraulic cylinder retracts to allow oversized materials to fall out through the discharge opening.
Overload Protection – The hydraulic overload protection system releases pressure automatically to prevent equipment damage.
Auto Reset – Once the fault is cleared, the system automatically resets, enabling efficient and intelligent operation management.

Integrated Base

Compact Structure – The motor base, motor, and main unit are integrated into one design for a streamlined layout.
Lower Investment – Reduces platform construction costs and minimizes foundation requirements.
Space Saving – Smaller footprint decreases site occupation and civil work needs.
Easy Installation – Simplifies installation and commissioning, saving time and labor costs.

High Efficiency

Deep V-Cavity – The crushing chamber features a deep “V”-shaped design for improved material flow.
Higher Output – Enlarged jaw crushing area increases capacity per unit time.
Large Material Handling – Effectively solves the problem of crushing oversized materials.
Uniform Product Size – Eliminates dead zones in crushing, ensuring consistent and uniform final particle shape.

Adjustable Output

Shim Adjustment – Equipped with a shim-type discharge opening adjustment device for easier operation.
Wide Range – Offers a larger adjustment range to meet different production requirements.
Flexible Control – Enhances equipment flexibility for various material sizes.
User-Friendly – Simple and convenient adjustment process improves operational efficiency.

Hydraulic Control

Integrated Base

High Efficiency

Adjustable Output

Application Scenarios

Zhongyu Dingli undertakes the construction of sand and gravel aggregate production lines with an hourly output of 100-6000 tons, and provides intelligent control systems for mines.

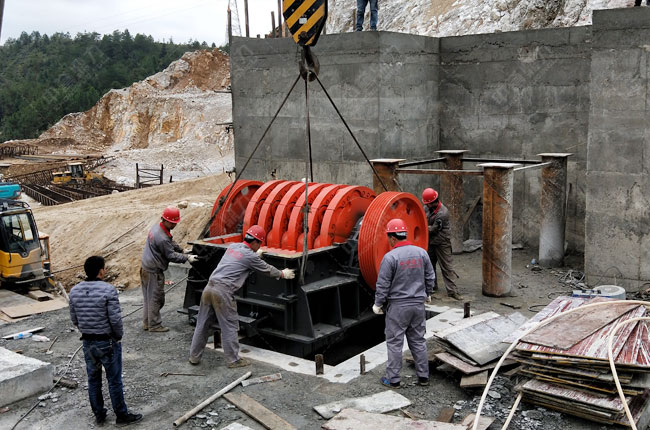

Guizhou 4,000 t/d Sand & Gravel Plant

The 4,000 tons per day sand and gravel production line is a newly built project designed to produce aggregates such as 12, 13, and 05 stone. Construction started in October 2017, with a total construction period of 45 days.

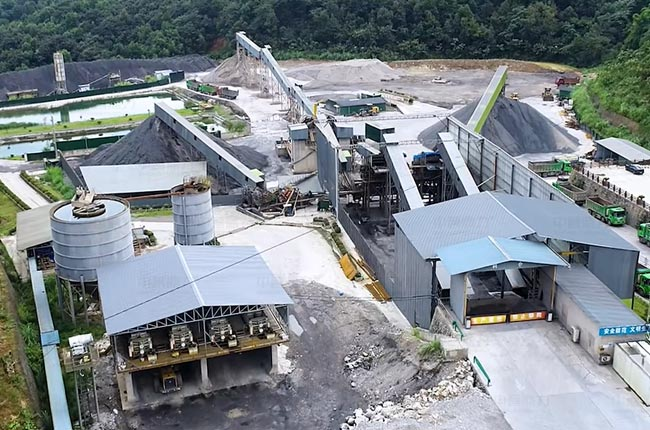

Hubei 10 Million Tons Aggregate Production Line

The large-scale aggregate production line in Yichang, Hubei has a total investment of RMB 60 million and covers an area of 53.73 mu (≈3.58 hectares). The project adopts a fully enclosed environmentally friendly design and is equipped with our DLPCZ1815 heavy hammer impact crusher, DLPC1220 shaping crusher, and other mining equipment.

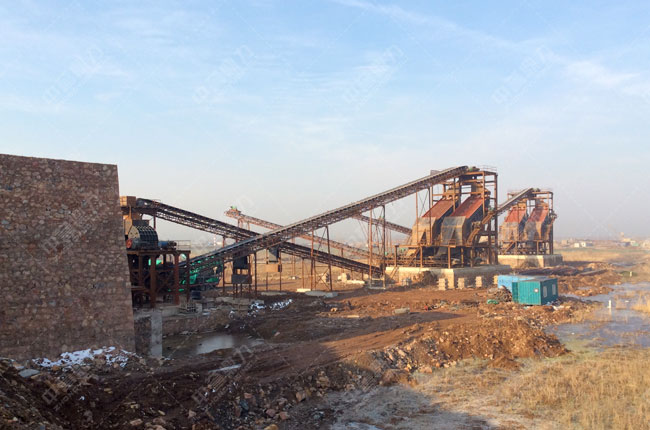

Anhui 1,000 TPH Aggregate Production Line

This project is a newly constructed large-scale aggregate production line completed and put into operation in 2017. The designed capacity is 1,000 tons per hour, with a maximum output reaching 1,500 tons per hour. The production line mainly processes limestone into 0–5 mm, 12 mm, and 13 mm aggregates.

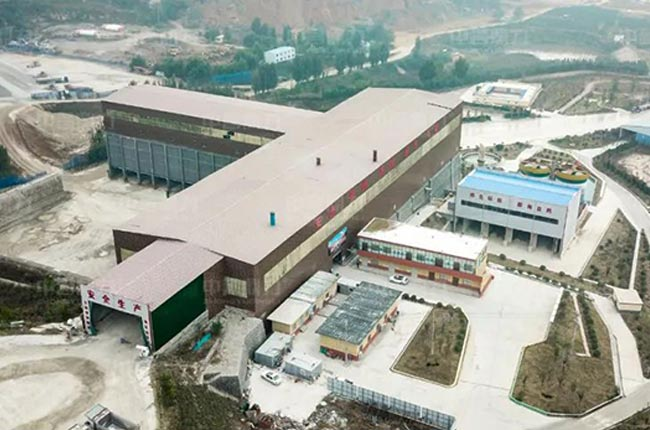

Shandong Shuifa Wet Process Manufactured Sand Production Project

This project adopts a wet sand-making process, which provides excellent dust suppression. Soil and stone powder are washed away during production, resulting in high-quality finished aggregates and manufactured sand.
